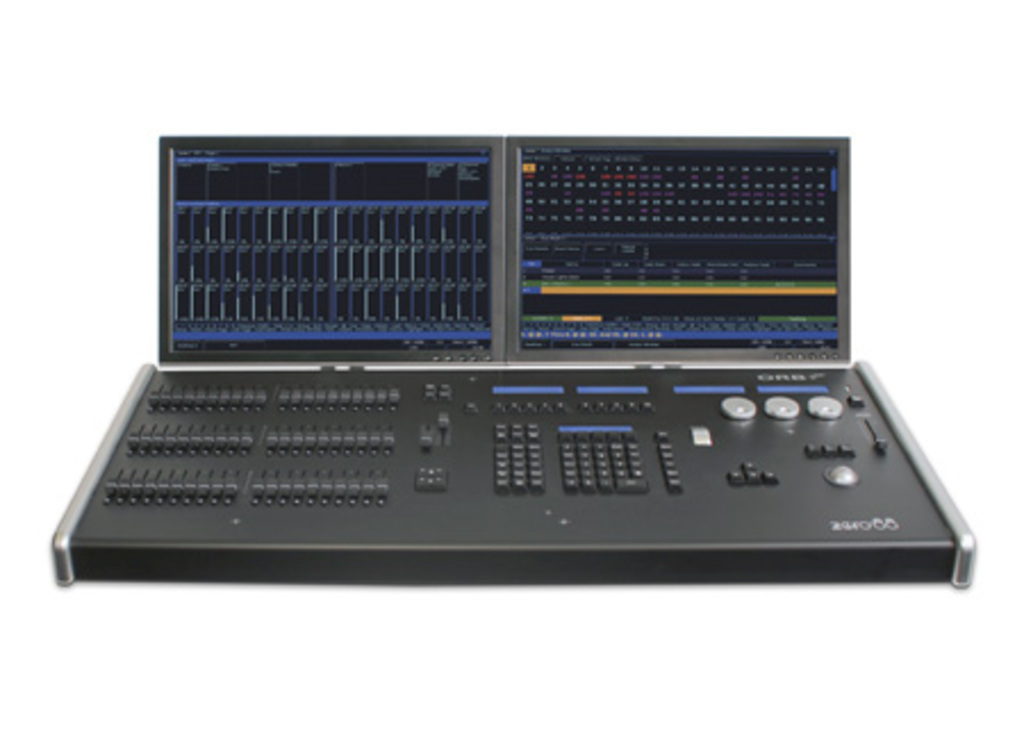

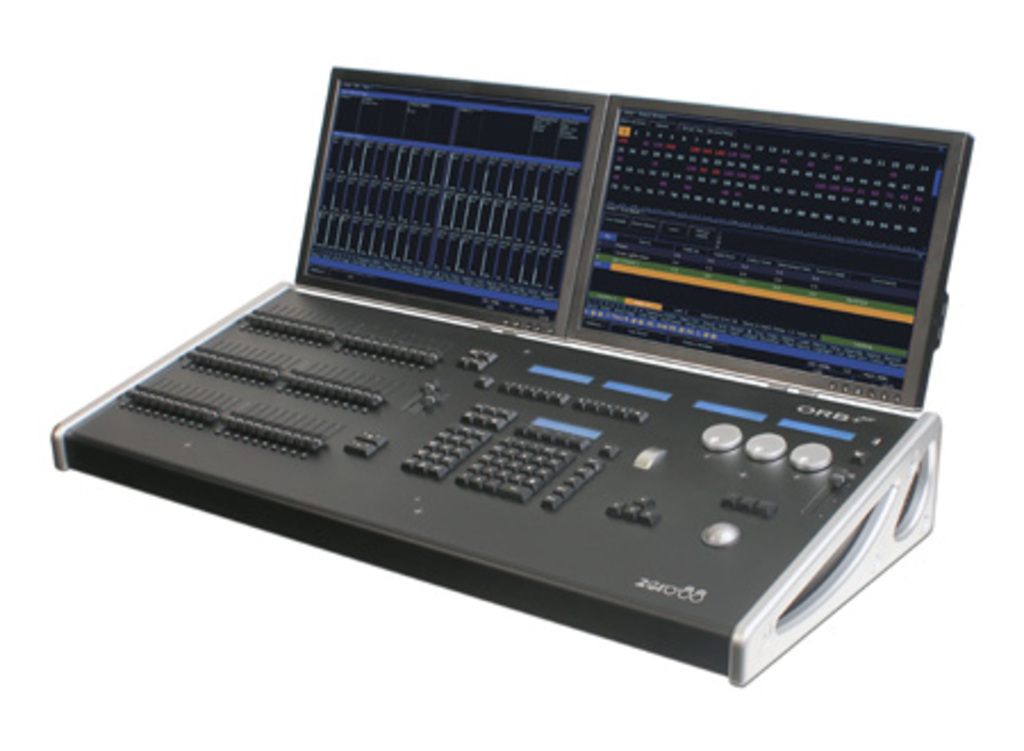

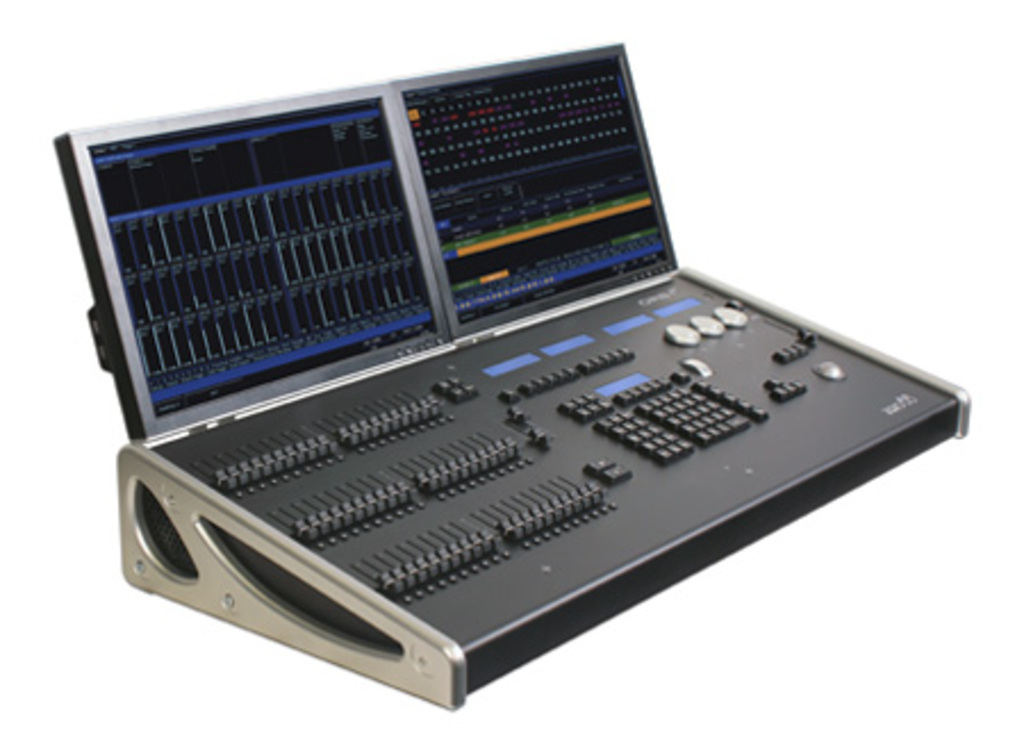

ORB FX 2048ch Console

품절 상품입니다



ORB Series - Next Generation Lighting Consoles


Building on the success of the ORB lighting console, the ORB XF adds additional fader control

for intensity channels and live submaster playback, making it ideal for control of live events.

Combining theatrical syntax with 60 multifunction faders, ORB XF provides intuitive control of both

generic dimmers and moving lights.

Operating on the highly successful ZerOS family software platform, ORB XF provides an intuitive

interfaces for operators. ORB XF lets you make dynamic ‘on the fly’ adjustments to cues, supports

advanced tracking functionality and enables creation of powerful effects. For theatrical playback,

there are 1000 cue stacks of upto 1000 cues addressable through the 2 playback masters or via

the multi function faders.

Software features include an onscreen colour picker, gobo image display and a sleek, clear user

interface placing the latest in lighting control technology at your fingertips. A familiar programming

interface gives ORB XF users the flexibility of customising displays and default settings, truly making

the desk their own.

As part of the ZerOS family of consoles, show files can be shared and modified by any console

including the off-line editor and PC backup. An internal fixture library of more than 3000 fixtures

makes it easy to swap between fixture types, maintaining flexibility on touring shows.

Add multiple touchscreens, wireless mobile devices, architectural and advanced Ethernet

networking to Zero 88’s comprehensive range of dimming options for a truly integrated system




- 2048 Control Channels, fully patchable to 4 DMX Universes.

- Output via 5 Pin XLR and Ethernet

- Optional upgrade to 4096 control channels (8 universes) available

- 1000 Cue Stacks

- 1000 Cues per Stack

- 2 Playback Master faders

- Go Button playback

- Fully customisable effects engine

- 1000 each of Colour, Beamshape, Position and Effect Palettes

- Integrated colour picker

- 1000 Fixture groups

- Auto palettes, groups and fixture macros

- 1000 User Definable Macros

- RDM Ready

- 4 Onboard USB ports for software updates, show backups and connection of accessories

- 2 x XGA monitor outputs

- Onboard fixture library

- Move on Dark

- Familiar Command Line interface

- Integrated Trackball for precise moving light control

- Support for remote control through handheld devices and remote monitors

- Tracking Backup over Ethernet

- 60 Multifuction Faders selectable as channels, submasters or playbacks
