ELATION

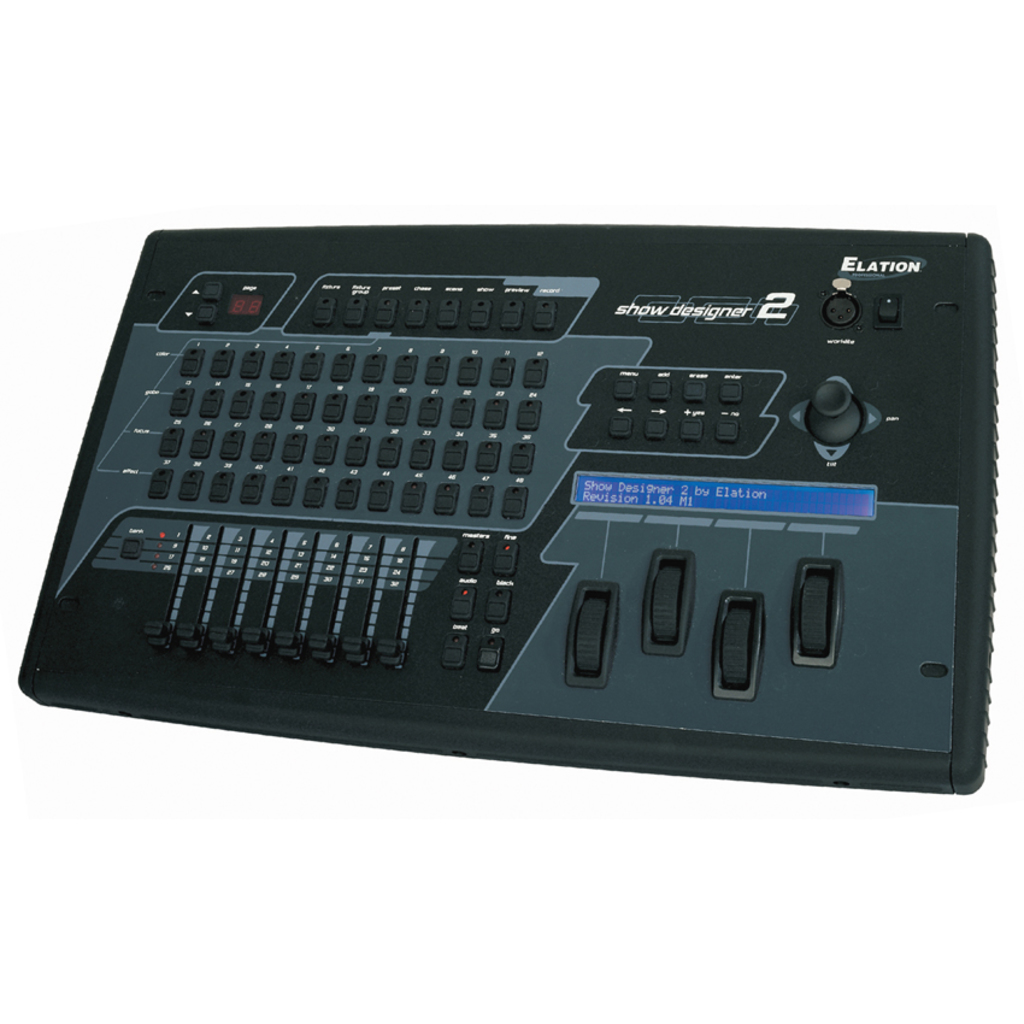

Show Designer 2CF
Show Designer 2CF
Elation Intelligent Lighting Controllers Part 1
MAIN CONTROL FEATURES
- 2 Universe Outputs
- 1024 Total DMX Channels
- Large Fixture Library
- Effects Engine
- 1152 Programmable Chases
- 4752 Programmable Scenes
- 1152 Programmable Shows
- 1152 Programmable Presets
- Control 48 moving light fixtures of up to 32 channels each
- 48 Fixture groups
- 8 faders allow control of 32 DMX fixture channels or as 32 scene masters
- Scene Preview with "Go" feature
- Factory ready Color, Gobo, Focus & Effects Presets!
- Easily Name Scenes, Chases or Shows using Standard Computer KEY BOARD!
FRONT PANEL CONTROL OPTIONS
- 80 Character backlit LCD Display for easy programming
- 48 Multi function buttons
- JOYSTICK for Pan/Tilt Operation
- 4 Large Rotary wheels for Menu and Control
- 8 Faders x 4 Banks
- XLR Little Light Connector
- ON/OFF power switch
REAR PANEL CONTROL OPTIONS
- 2x (3Pin) DMX Outputs
- 2x (5Pin) DMX Outputs
- Midi-In port
- Midi-Out port

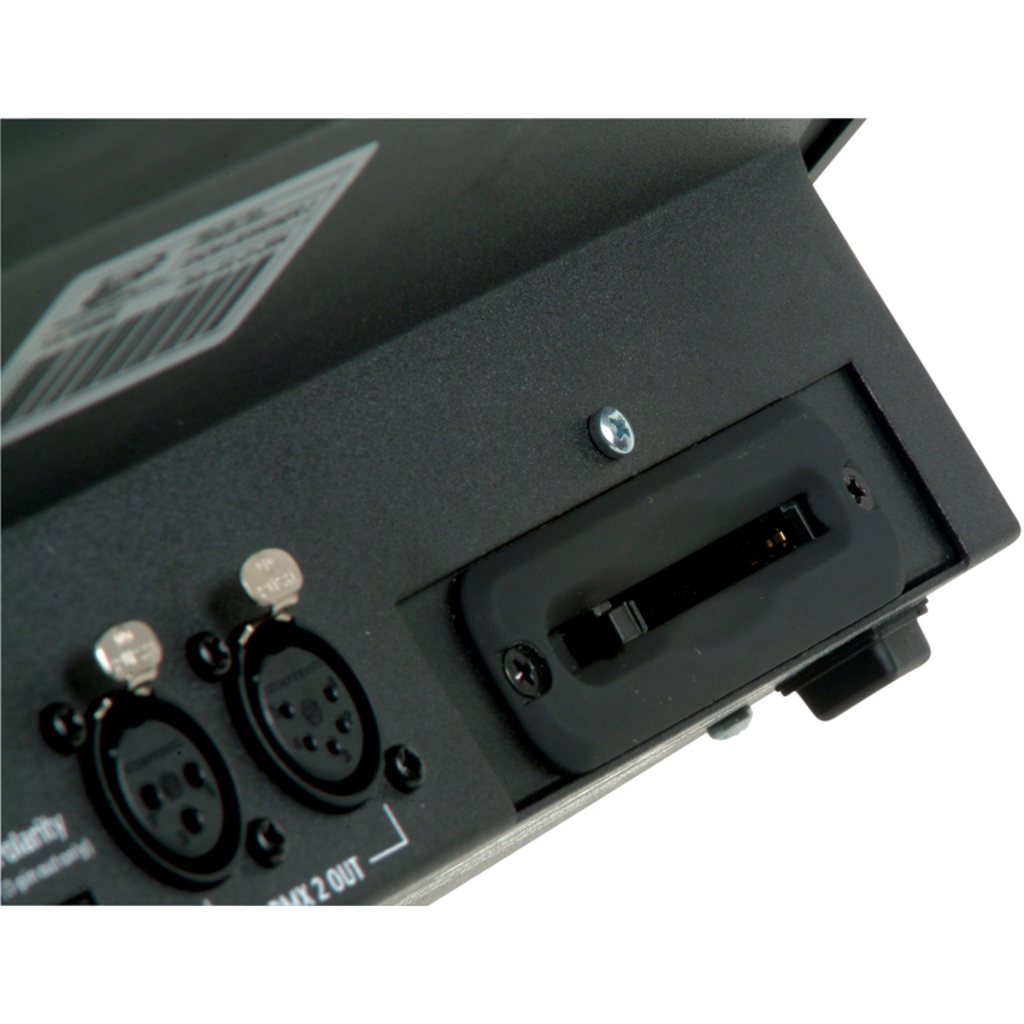

- Compact Flash Drive (For use with the following type Compact Flash Cards;
Elation Professional® recommends 64MB SanDisk, 64MB Kodak or 64MB
Cannon Compact Flash Cards only.
- KEY BOARD Input
- RS-232 Port, for PC interface
- 2 x Polarity Switch per Output
- RCA Audio Input for Chases
TECHNICAL SPECS & DATA
- Polarity switch (2-,3+/2+,3-) 3 Pin XLR only
- 1MB internal memory
- Battery Back up
- 19" Rack mountable, 6 space
- Dimensions: 19" x 10.5" x 4"
- Weight: 10 lbs
- Voltage: 120V/220V via (Power Supply)9-12v DC/1200ma
Downloads
- Show Designer Back-up Software
- Show Designer Profiles (ZIP)
- Show Designer 2CF User Manual v1.20
- Show Designer 2CF Spanish User Manual
- Show Designer 2CF Software v1.20 (ZIP)
