Rayzor Q7

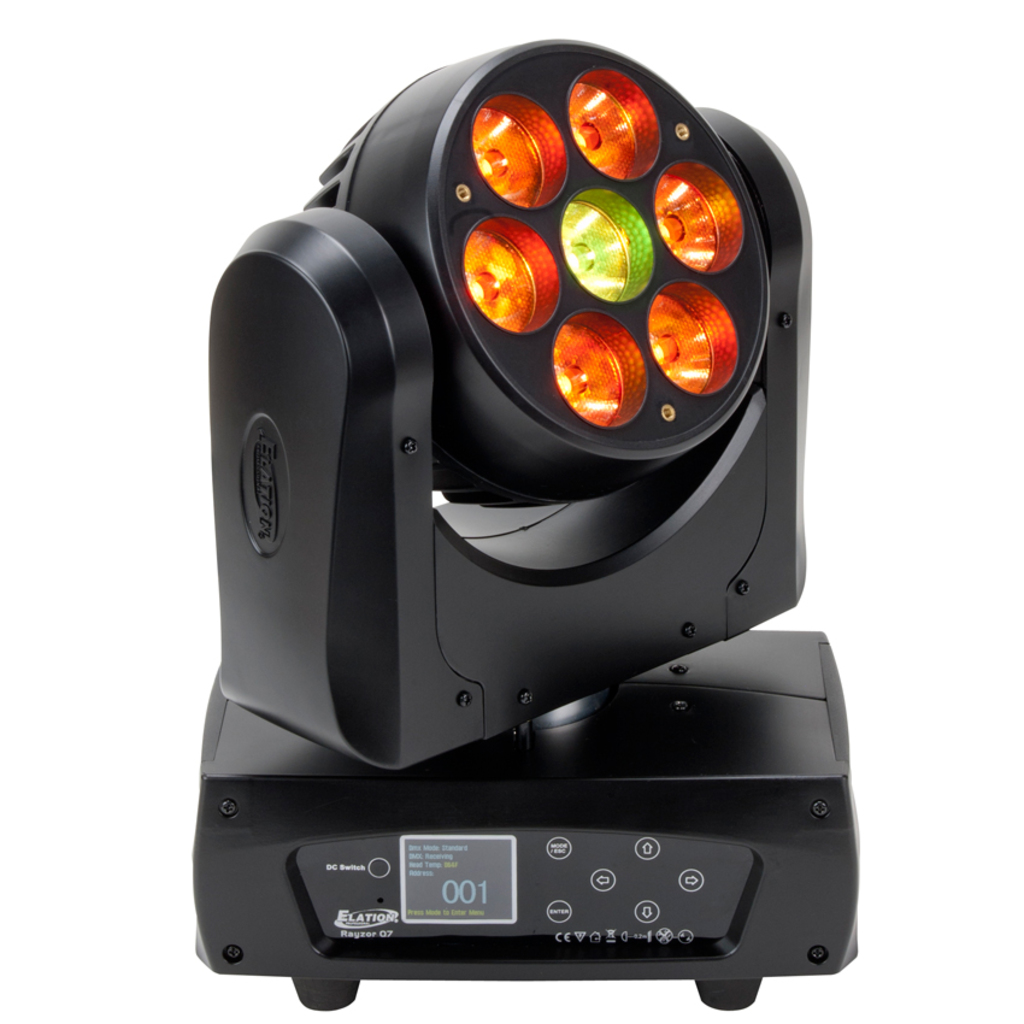

Elation Professional - Rayzor Q7



The Rayzor Q7 is the smallest, fastest and most powerful moving head LED wash / beam in it's class.

Featuring Quad Color LED's and High Output Optical technology, Rayzor Q7 produces a Rayzor sharp

beam with a 7 degree beam angle lens system, has Rayzor fast movement with new high speed 3-phase

motor technology. Utilizing 7 x 15 Watt Osram Quad Color RGBW LED's which can also be controlled and

chased in 4 independent zones for dynamic visual effects. Optional accessories for the Rayzor Q7 include

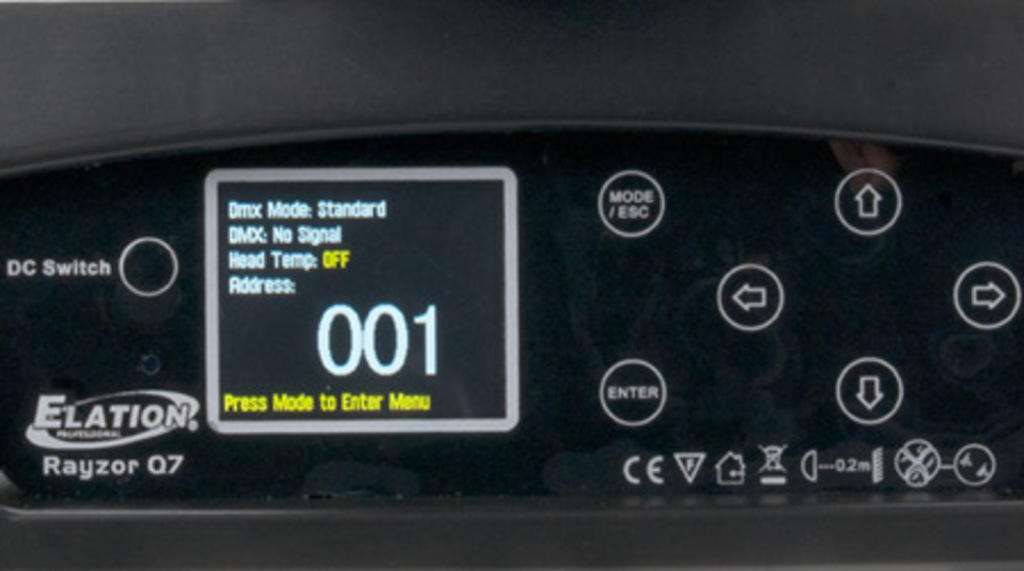

a snoot lens cover and diffusion filter holder. The Rayzor Q7 features a full color LCD touch menu display,

powercon in/out linking, multi-voltage power supply from 100-240v and 5pin DMX as standard.

The Rayzor Q7 is CE approved and cETLus approval is pending.

Specifications

- 7 x 15W Quad Color RGBW LEDs

- LED Type: OSRAM LERTDUW S2W

- 100,000 hour long life LED

- 7° beam angle

- 13° field angle

- 1,743 Lux @ 7.5M

- Strobe 1-18fps

- Dimming: 0-100%

- 4 zone chase effects

- 8 macros

- 15/17/29 DMX channels

- 5pin in/out DMX connectors

- Power con in/out

- Full color LCD display

- 540 / 630 x 265 Pan / Tilt

- 100-240v / 50-60hz power input

- ST 250V T3.15A fuse

- 45° max ambient temp

- 140W max power

- Flicker Free

- RDMX

- Color LED touch display

- Black Case Color

- Single Omega bracket mounting

- Electrical Approvals: CE and cETLus APPROVED

- Optional accessories: Snoot / Diffusion Filter holder

- Weight: 11lbs

- Dimensions: 9.25" x 5.5" x 12.5"

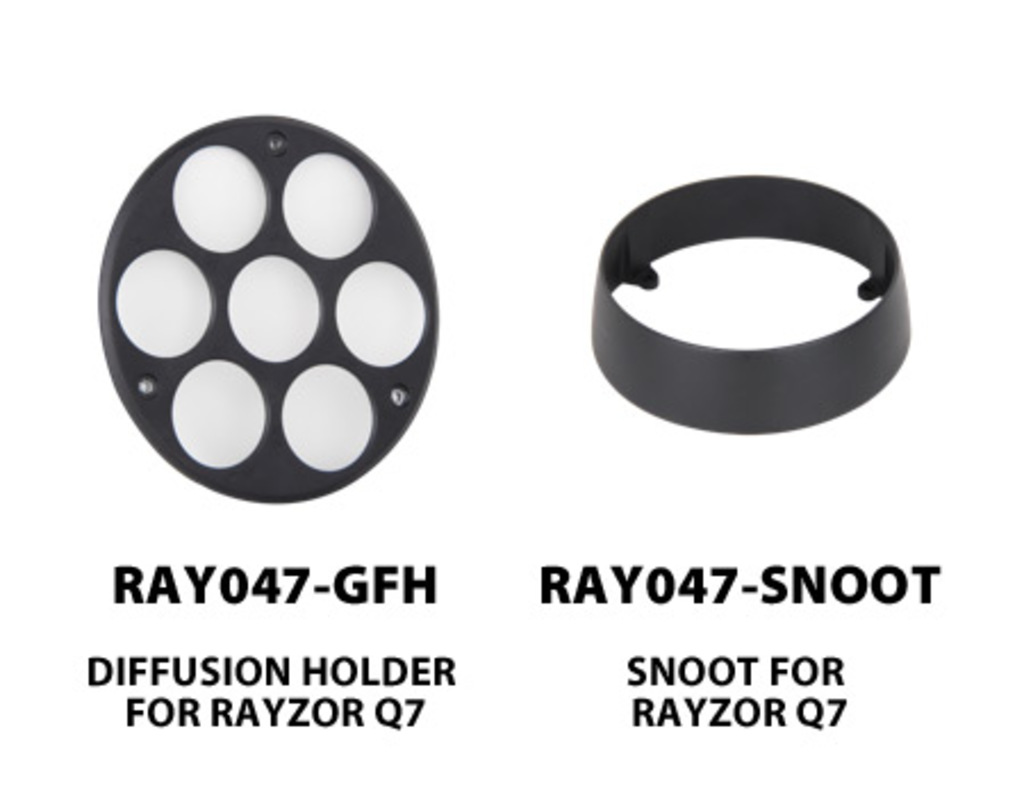

RAYZOR Q7 ACCESSORIES

- RAY047-GFH: DIFFUSION HOLDER FOR RAYZOR Q7

- RAY047-SNOOT: SNOOT FOR RAYZOR Q7



Downloads

- User Manual

- Dimensional Drawings

- Photometric Data

- Cut Sheet

- CAD File

- DMX Chart
