Platinum Spot LED PRO II

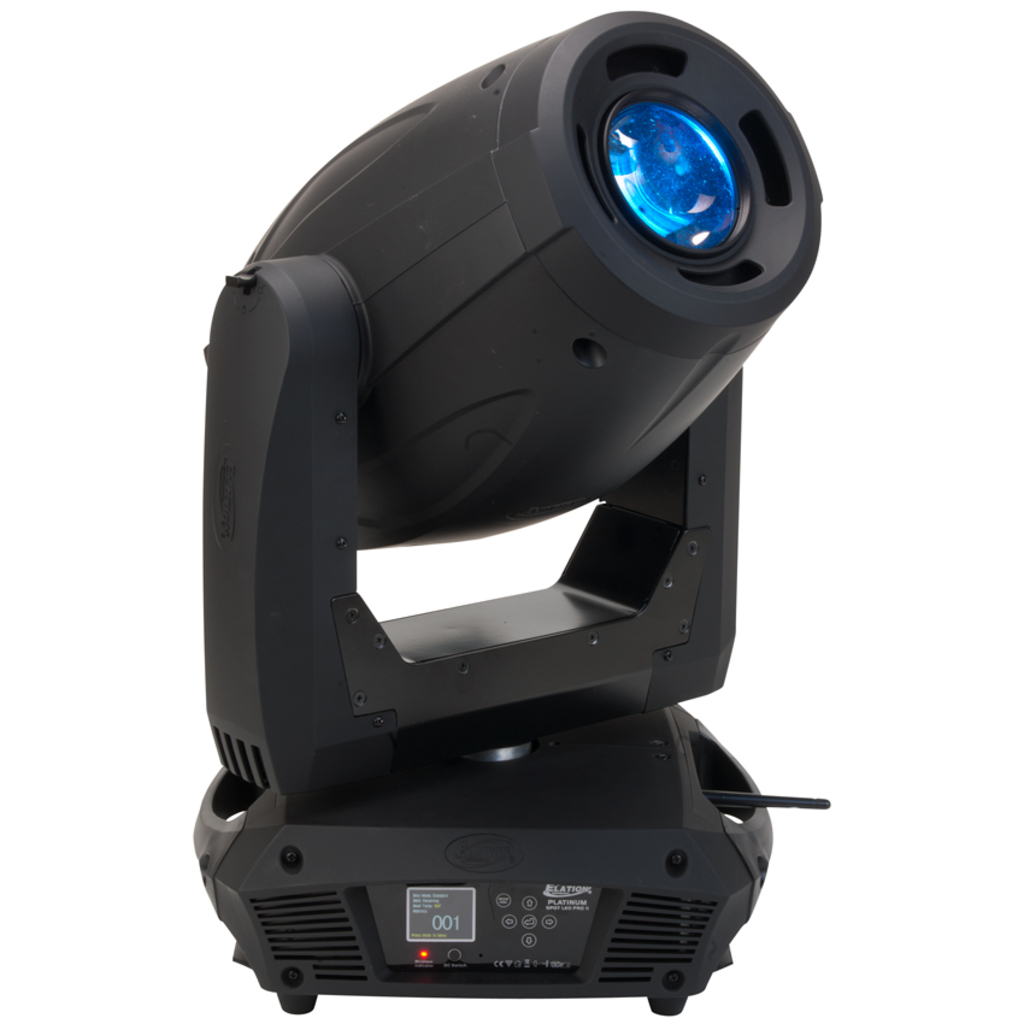

The new Platinum Spot LED PRO II features an extremely bright 170W Cool White LED engine,

17° to 36° zoom, 16-bit resolution on all motor functions, 2 gobo wheels with a total of 14 gobos

including 7 interchangeable, rotating, and indexing glass gobos, a static dichroic color wheel with

7 colors plus white, 3 Facet rotating prism with 16 prism macros, frost filter hybrid wash effect,

motorized iris, focus, and dimming, high speed mechanical shutter / strobe, hibernation mode,

7 internal auto programs, 3 and 5pin DMX connections, internal wireless DMX receiver, RDM
(Remote Device Management), full color 180° reversible menu display with 6 button touch control

panel, battery backup for display power, a multi-voltage universal auto switching power supply

(100-240v), and fllicker free operation for tv and film.

SOURCE
- 170W LED Engine 8,000k

PHOTOMETRIC DATA
- Max 10,620 LUX (987 fc) @2.5M (17° Min Zoom Full On)
- Max 2838 LUX (264 fc) @2.5M (36° Max Zoom Full On)
- 60,000 Hour Rated LED Life

FEATURES
- Hibernation Mode
- Internal Wireless DMX Receiver
- RDM - Remote Device Management
- 540°/630° Pan - 265° Tilt + Pan / Tilt Lock
- Motorized Focus / Mechanical Dimming: 0% - 100%
- High Speed Mechanical Shutter / Strobe
- 7 Auto Program Macros + Two Direction Color Effect

EFFECTS
- Frost Filter Hybrid Wash Effect
- 17° to 36° Zoom + Motorized Iris: 5% - 100%
- 3 Facet Rotating Prisms + 16 Macros

COLOR
- 1 Color Wheel - 7 Dichroic Colors (Red, Blue, Green, Lt.

  Yellow, Magenta, Salmon Pink, Lt. Blue) + White

GOBOS
- Wheel 1: 7 Interchangeable / Rotating / Indexing / Glass
- Wheel 2: 7 Static / Metal
- Size: OD 27mm / ID 22mm

CONTROL / CONNECTIONS
- 3 DMX Channel Modes (17 / 15 / 22)

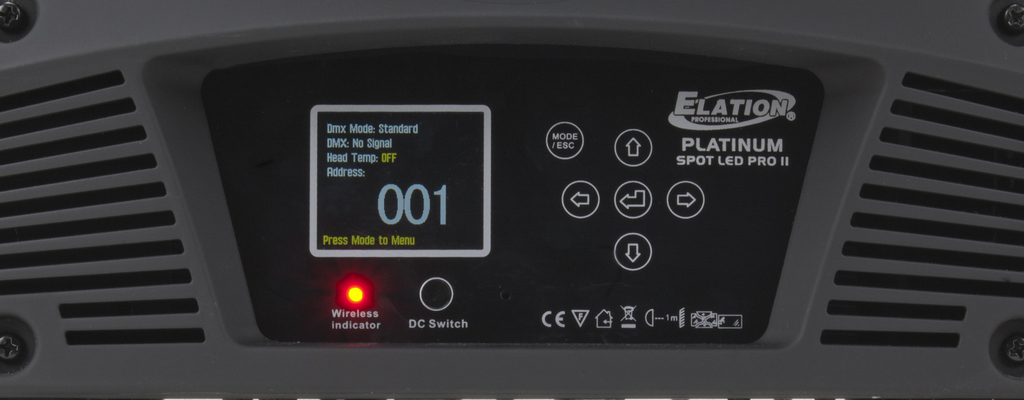

- 6 Button Touch Control Panel
- Full Color 180° Reversible LCD Menu Display
- 8 / 16 Bit Resolution Adjustable Movement

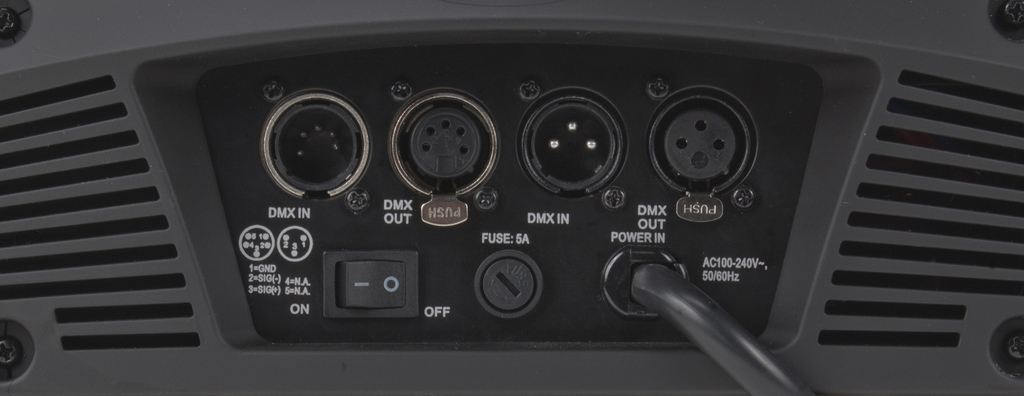

- 3pin & 5pin DMX In/Out

SIZE / WEIGHT
- Length: 14.6” (374.7mm)
- Width: 15.1” (384mm)
- Vertical Height: 23.7” (601mm)
- Weight: 46.3 lbs. (21kg)

ELECTRICAL / THERMAL
- AC 100-240V - 50/60Hz
- 230W Max Power Consumption
- -13°F to 113°F (-25°C to 45°C)

APPROVALS / RATINGS
- CE + cETLus Approved
- RoHs Compliant
- IP20 Rated

INCLUDED ACCESSORIES
(2) Omega Brackets (SKU # 207990006)
(1) Safety Cable
(1) 3pin DMX Cable
(1) powerCON Cable

Specifications are preliminary and subject to change without notice





Downloads

- DMX Chart

- Dimensional Drawings

- Photometric Data

- Vector works File 2013

- CAD File
