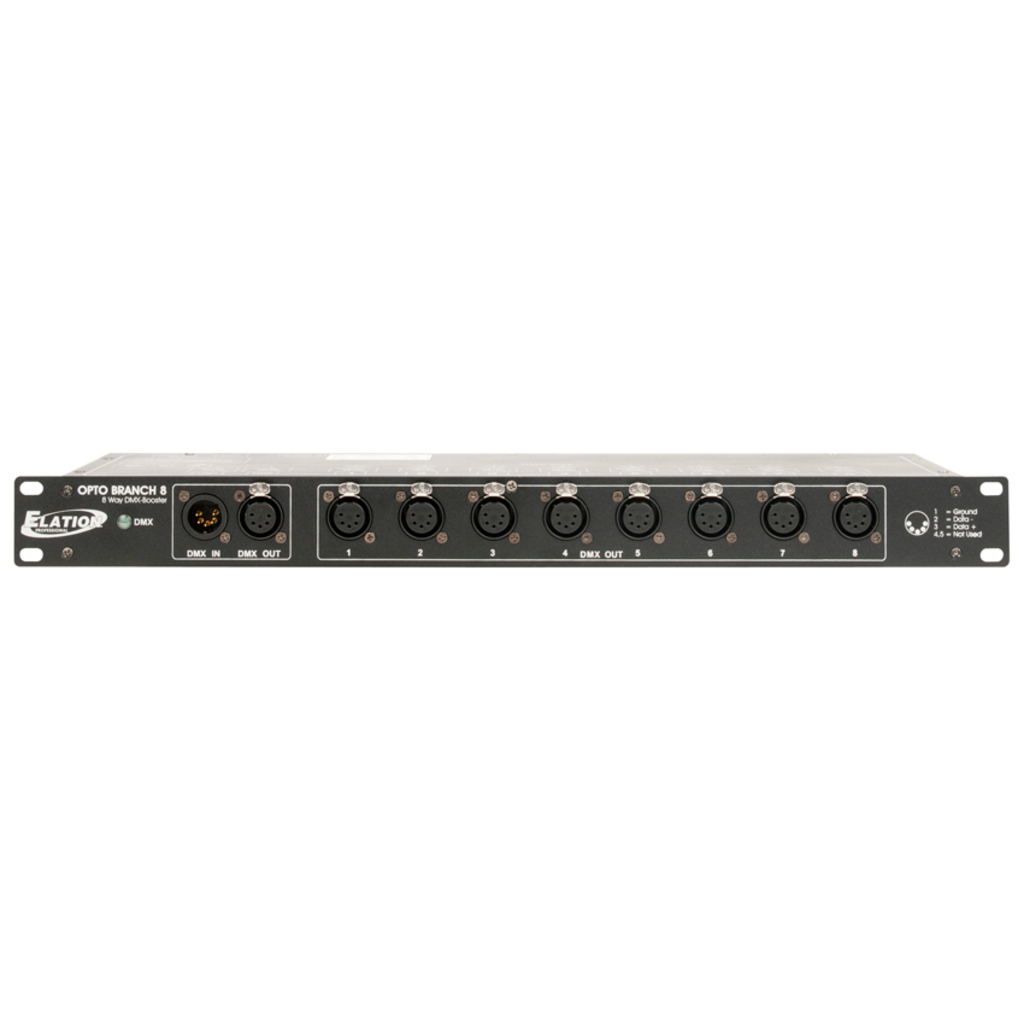

Opto Branch 8


8 Way 5pin DMX Opto Isolator / Distributor

The OPTO BRANCH 8™ is a 19” single rack space, 8-way DMX distributor/booster with 5-pin XLR

input and output jacks. This unit takes the incoming DMX signal and splits it to eight (8) separate

outputs, each providing a total electrical isolation of up to 1000V between different branches in a

daisy chain group. This greatly decreases problems with ground loops and efficiently buffers and

magnifies the DMX signal, making it more accurate and reliable. All outputs include 5-pin XLR sockets,

which are electronically isolated from each other to ensure uninterrupted data. In addition, each output

has dedicated drivers to boost the incoming signal.



 - 8 Way DMX Data Splitter

- Fully DMX-512 (1990) Compliant

- Buffers and Distributes DMX Data Reliably

- DMX Status Indicator

- (1) 5pin Neutrik XLR Isolated Input

- (1) 5pin Neutrik XLR Passive Loop Output

- (8) 5pin Neutrik XLR Isolated Outputs

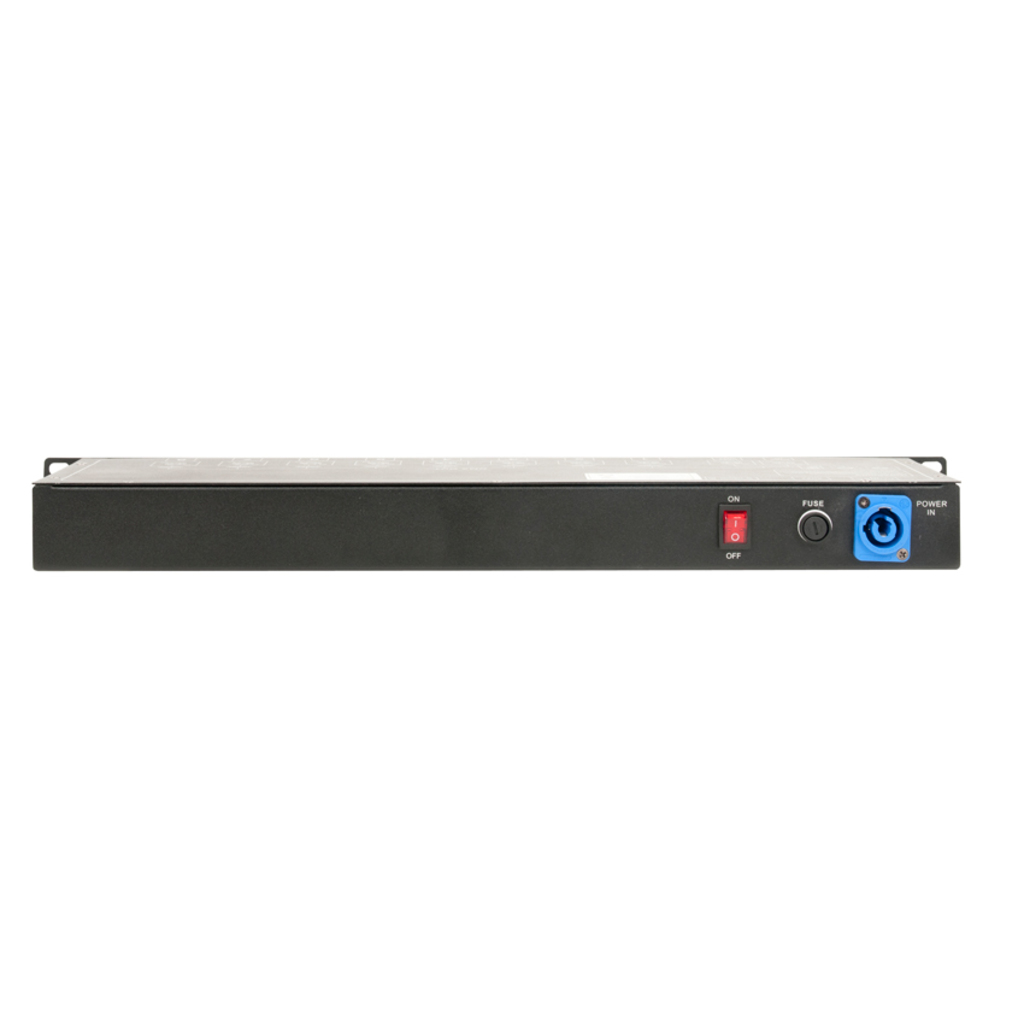

- Power: Auto Switching, 100-240V 50/60Hz

- powerCON power input

- On/Off Power Switch

- 1U 19” Rack Mount

- Dimensions: 19" x 1.75" x 5.71" (482.5 x 44.5 x 145mm)

- Weight: 4.4lbs (2kg)



- User Manual
