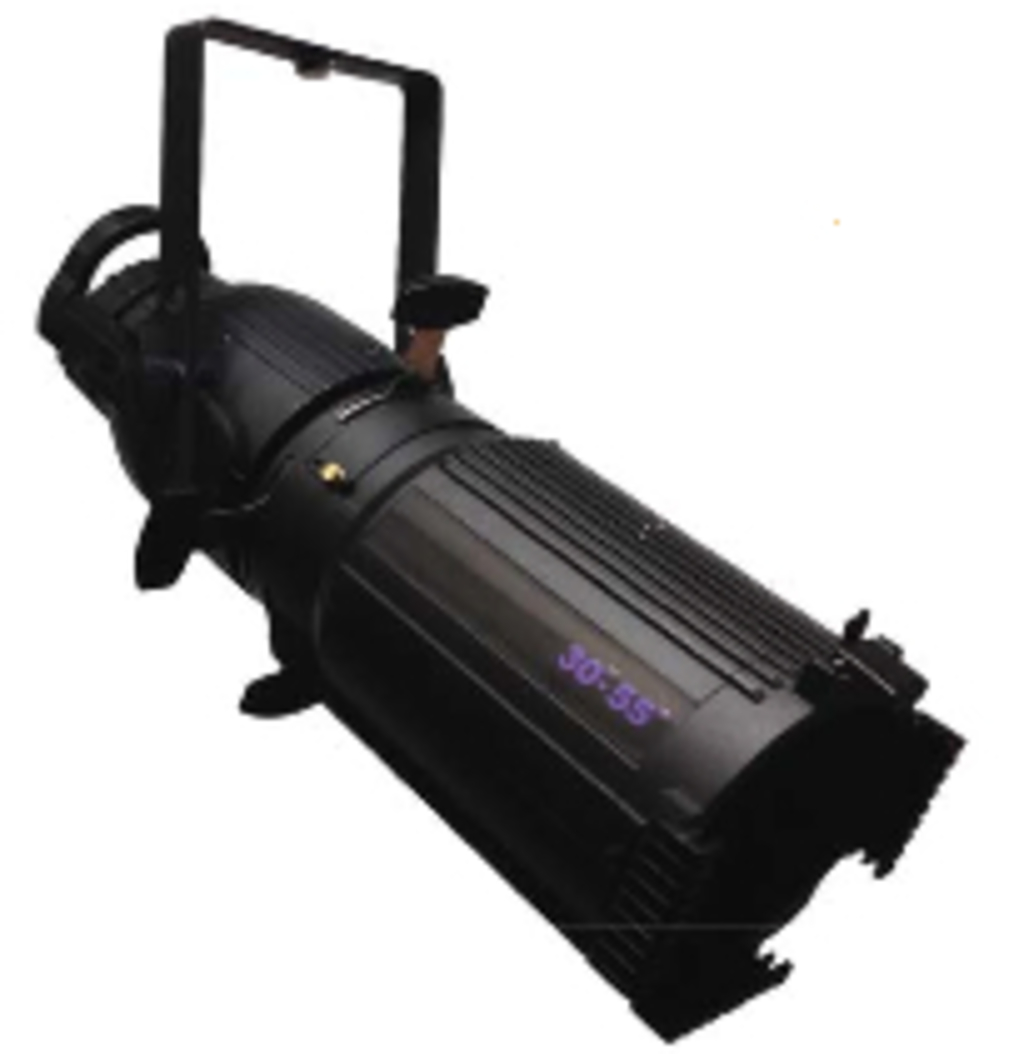

Phoenix Zoom Ellipsoidal 15°-35°



Overview



The 15°-35° and 30°-55° Phoenix Zoom ellipsoidals are state of the art luminaires in function, style, and efficiency.

These ellipsoidals have been designed and engineered with a number of innovative details and features

enhancing versatility and efficiency without sacrificing performance. To broaden the capabilities of the fixture

we offer it with the choice of either a GLA or HPL series lamp. A 360° rotating barrel help keep your keep the

artistic part of your fixture’s focus intact and easy to attain, and with virtually no light leak from the fixture itself

you wont have to worry about any extra light illuminating unwanted parts of the ceiling. The aesthetic appearance

and ergonomically designed function controls only add to the appeal. All of these new and innovative options

are what makes the Phoenix Zoom ellipsoidals ideal for theatres, long throw venues such as opera houses,

or wherever superior energy efficient lighting performance is required.



Specifications



575 & 750 WATT
PHOENIX ZOOM ELLIPSOIDAL



Features:



- Compatible with GLA or HPL series in 375W, 575W and 750W compact filament lamps.

- 360 degree rotating barrel.

- Completely enclosed accessory holder.

- Heat resistant Plano-Convex Lensing.

- Die cast aluminum and sheet metal fabrication.

- Color frame and spring clip safety cable included.

- 3 foot power cable.

- C-Clamp included with fixture.

- Weights: 15°-35° approx 22 lbs. 30°-55° approx 21 lbs.

- ETL & cETL listed.

- Made in the USA.



Housing: Die-cast aluminum construction


Yoke: Rigid flat steel with dual locking dog tilt handles, two mounting positions, indexed tilt angle markings.


Reflector: Spring mounted dichroic coated glass, ellipsoidal design.


Lenses: Color coded crown glass (white plate) lenses provided with anti-reflective coating. Molded front lens made
out

of polymeric plastic for 5 and 10 degree units only.


Socket: G9.5 medium two pin GL or HPL lamp holder axially mounted, supplied with heat shield. Tool free re-lamping.


Rating: 100, 120, 240 Volts AC/DC operation, 6.3/3.1 Amps, 750 Watts maximum.


Cable: 36”Teflon leads incased in black fiberglass sleeving, rear cord wrap provided.


Shutters: Four .037” stainless steel, fully adjustable and lockable. Constructed with oversized heat resistant handles.





Downloads



- Data sheet



- Altman Standard Warranty



- Request information
