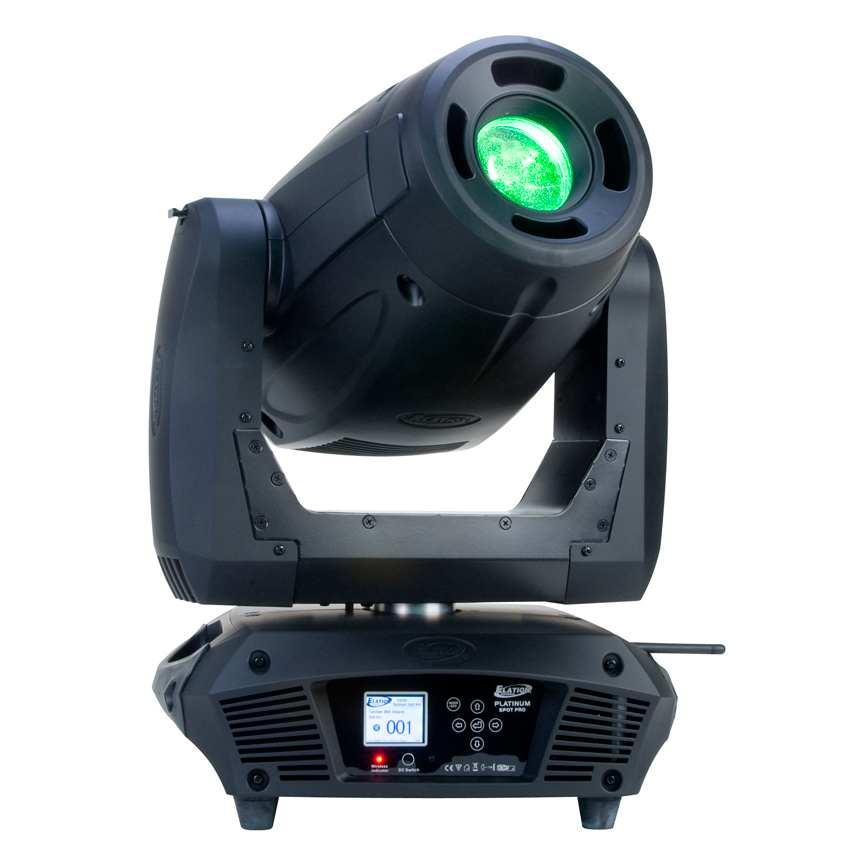

Platinum Spot 5R PRO



Elation Professional - Platinum Spot 5R Pro





Features



- CMY Color Mixing System 16bit

- Variable Zoom ( 4 to 1)

- Comparable To 575 Fixture And More Than The Lamp Life

- EWDMX Wireless DMX Receiver Built In

- Double the Output of 250 Fixture

- Increased Speed On All Motors

- Compact… 1/2 The Size Of 575 Fixture - 1/3rd Smaller Than A 250

- Less Weight… 1/2 The Weight Of 575 Fixture

- Energy Efficient… Less Than 1/2 The Power Consumption Of A 575

 Superior Optics Flat / Even Light Field And Improved Output

- Hybrid Technology - Spot / Wash

- Featuring New Philips MSD Platinum 5R Lamp



Technical Specifications



- CMY 16bit Color system

- 8 Dichroic Colors

- 22 Gobos

- 8 Rotating Replaceable Rotating / Indexing Gobos

- 14 Static Gobos

- Gobo Size 14mm OD / 8mm ID

- 3 Facet Rotating Prism

- Motorized Iris

- 11° to 42° Variable Zoom Beam Angle

- Variable Frost Filter (Hybrid Effect for Wash)

- Motorized Focus

- Variable speed Shutter / Strobe

- Mechanical Dimmer 0-100%

- EWDMX Wireless DMX receiver built in

- Pan/Tilt: 540/630 x 265

- 23/21/34 3 x DMX Channel Modes

- 3-pin & 5-pin DMX

- Power: 350W MAX / 120v-240V 50/60hz

- 6,350 LUX / 590 FC @ 16’

- Weight: 42 lbs

- Dimensions: (LxWxH) 14.6” x 14.5” x 18.4”

- Lamp: MSD Platinum 5R Philips 2,000hr

- cETLus approved



Downloads

- Photometric Data

- Cut Sheet

- User Manual

- Dimensional Diagram
