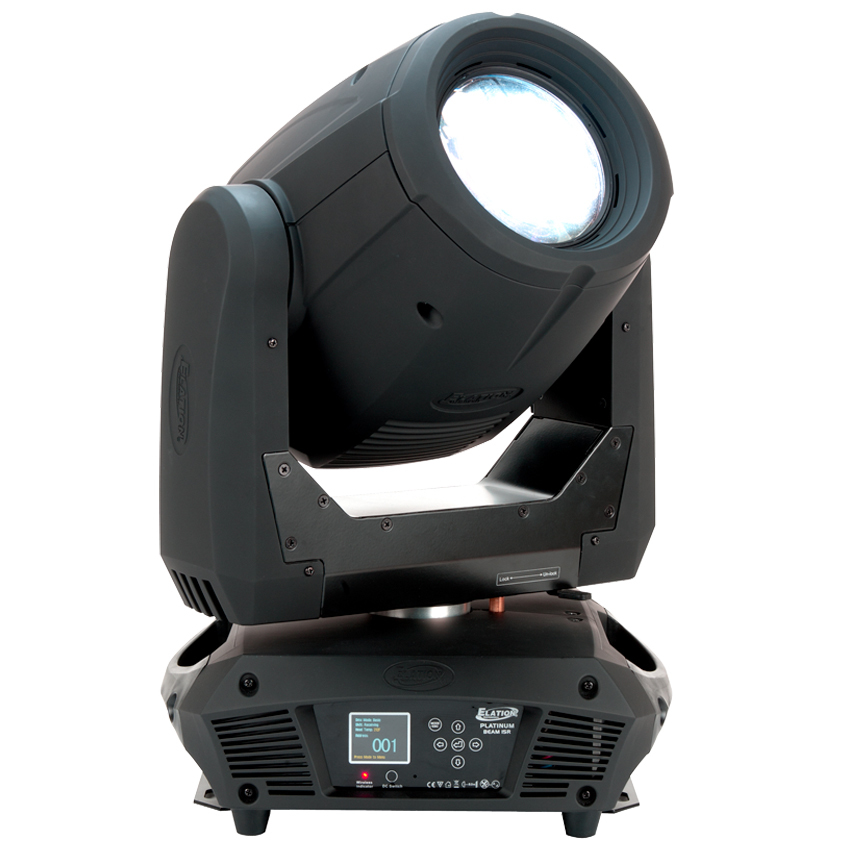

Platinum Beam 15R PRO



The Platinum Beam 15R is the next evolution in extreme ACL / Beam moving heads.

Featuring the new Platinum 15R 300 watt Lamp from Philips, offering comparable output to

1200w fixtures with a new specialized optical system offering sharp gobo projections and

a extreme beam “ACL / Searchlight” type effect. Featuring 8 dichroic colors, 8 rotating

indexing gobos, 11 static gobos, rotating 8 facet prisms, frost filter for wash effect and

lighting fast 3 phase motors for all effects.



FEATURES

- Razor Sharp 4.8° Beam Angle

- Uses Philips MSD Platinum 15R Lamp technology 300W

- Remote Focus, Stepless Frost (Hybrid), 8 Facet Prism

- 8 Dichroic Colors

- 19 Gobos 8 Rotating / indexing, 11 Static

- EWDMX Receiver built in







SPECIFICATIONS

- Philips MSD Platinum 15R lamp (13500th, 8000°K, 2000h) included

- 106400 Lux @ 15m

- 4.8° beam angle

- No need for cleaning or adjustment of reflector or lamp

- All lenses are anti-reflection coated

- 1 color wheel with total 8 colors + white

- Variable speed color scrolling both directions (rainbow)

- 2 gobo wheels

- First wheel with 8 rotating and interchangeable (quickout)

- Second wheel with 11 static gobos plus open

- Variable speed gobo scrolling in both directions

- Gobo Size: 14.0mm outside, 6mm image diameter

- Rotating, indexing prism: 8-facet

- Macro-function for rotating gobo/prism combinations

- Variable Frost Filter (Hybrid effect for Wash)

- Dual flag mechanical dimming system

- Variable speed strobe effect

- Preset variable/random strobe and dimming pulse effects

- Automatic Pan / Tilt position correction

- Maximum Pan-movement 630° or 540°/ 16 bit

- Maximum Tilt-movement 265° / 16 bit

- 3 Phase motors for fast, accurate Pan / Tilt positioning

- Vector Mode with blackout MIB function

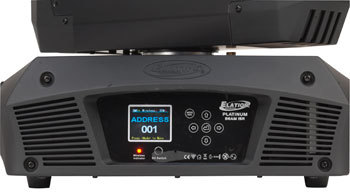

- Battery powered and colored LCD Display

- 14/16/22 DMX channels USITT DMX-512 (16-bit resolution)

- Customizable DMX channel assignment

- DMX, stand-alone, master/slave, sound activated mode

- DMX recorder and edit function integrated

- Software update via DMX, using optional E-Loader

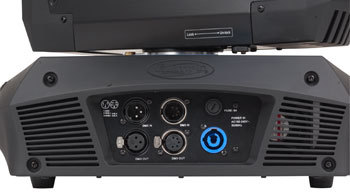

- 3-pin and 5-Pin XLR serial input/output

- Fan cooled - fans regulated automatic or DMX

- Constant temperature readout / management function

- 2 x 1/4 turn fastening Omega Clamps

- Electronic ballast and auto switching power supply

- Power consumption: 500W max.

- Voltage: AC 100V ~ 240V 50/60Hz

- Dimensions (LxWxH): 13.7” x 15” x 22.4” / 350x380x570 mm

- Weight: 50lbs / 23 kg

- cETLus approved



Downloads

- User Manual

- Dimensional Drawings

- DMX Traits

- Cut Sheet
