Lighting Consoles

LP-X48 1024ch Console

수량
결제금액
0
바로 구매하기
장바구니 담기

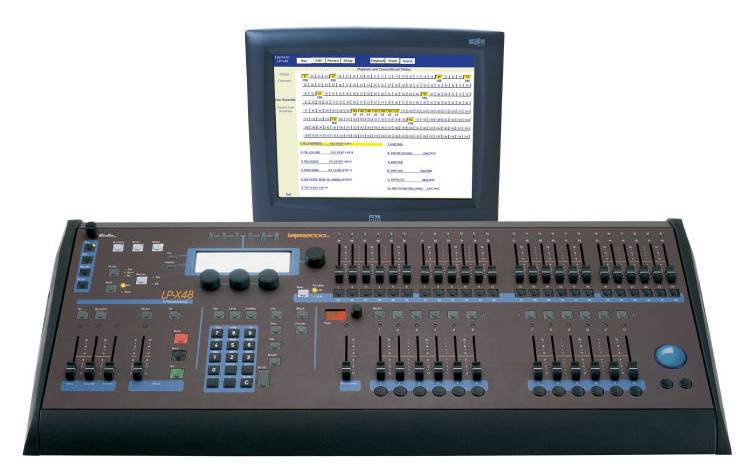

Leprecon LP-X48 Features & Benefits

*ACCESS TO DIMMERS VIA FADERS
Allows quick adjustment of 48 control channels during the show or when programming.

*VIRTUAL CHANNELS
Conventional channels will not be limited to the number of front panel faders. You can access up to 192
control channels via the keypad at anytime.

*20 PAGES OF 12 PLAYBACKS
Each Playback is capable of containing a virtually unlimited number of steps that are able to include looks
from Moving Lights, Scrollers, & Conventional Instruments. Steps from within each playback can be
activated via the ‘Select Button’ or they can be automated with timing triggers with Loop and Link
functions.

*THEATRICAL STYLE CUE STACK
Familiar user interface for executing cues containing Moving Light, Scroller, & Conventional Instrument
looks. The Cue Stack can be used independently or in conjunction with the 12 Playbacks.

*VGA, BACKLIT-TRACKBALL, & KEYBOARD SUPPORT
VGA Output-Offers increased viewing and access to Show Playback, Recording, & Editing.
Trackball-Ergonomically positioned for comfortable on screen navigation.
Keyboard Support-Used to name Labels (Palettes), Playbacks, & numerical data, such as timing
parameters and DMX values.

*MOVING LIGHT AUTO PATCH
The LP-X Series of consoles will locate the first available instrument slot and patch the fixture or fixtures
and assign the appropriate number of channels automatically.

*3.5” FLOPPY DISK DRIVE
Standard PC formatted disks can be used for show storage as well as program & Fixture Library updates.
Program & Fixture Library updates can be downloaded from Leprecon’s website.

*1024 DMX CHANNELS
Four DMX-512 isolated outputs are provided for moving lights & dimmers, each universe has two outputs
for isolated cable runs.
*EFFECTS GENERATOR
Instantly create patterns and effects with built in and user definable Focus, Beam, & Color Effects
Generator. Complex Position effects include pan & tilt, timing, & fixture sequence settings. Color & Beam
Effects include Fade, Hold, & Delay timing for each Color or Beam Label (Palette).

*OPTIONAL TOUCH SCREEN INTERFACE
Active Matrix TFT 15” Flat Screen interface places fixtures, labels (palettes), effects, timing parameters,
plus much more at your fingertips. Antiglare/Impact Resistant glass-touch surface utilizing Surface Wave
Technology offers years of precise and reliable service.

*SEPARATE FADE TIMES FOR COLOR, BEAM, INTENSITY, & FOCUS ATTRIBUTES
Gives the user the ability to quickly and easily program complex cues that incorporate separate fade rates
for CBIF attributes. Example: When a cue is executed, the color and beam looks may snap into place,
while the next focus position is completed over a 10 second period.

*LIVE OVERRIDE FUNCTION
Allows the user to easily make immediate changes at a second’s notice. This can be an invaluable
feature for those unexpected moments when the performer or speaker improvises during a show or
speech.
